Flexible High Power Charging Station
DEUTZ PowerTree

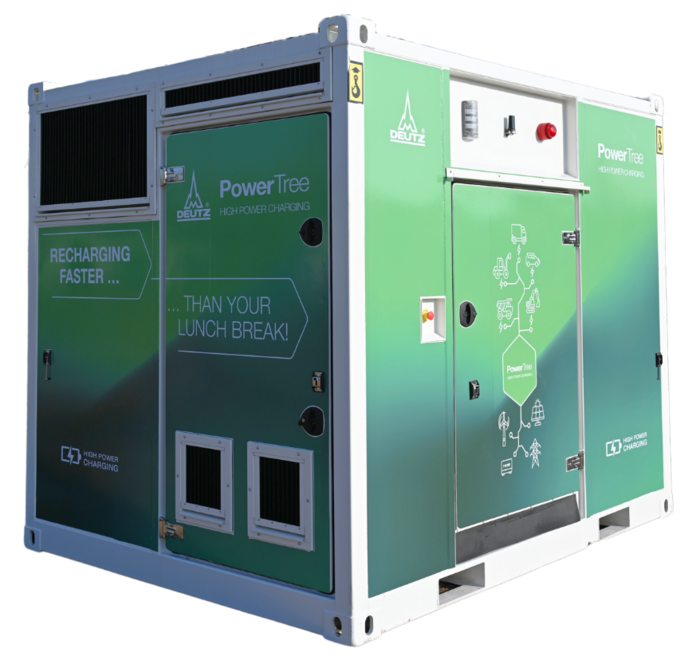

The PowerTree by DEUTZ is the first plug and play flexible fast-charging station. It is a mobile and robust system for recharging machinery quickly and safely.
FAST CHARGING, ROBUST CONSTRUCTION, MOBILE USE
The PowerTree delivers a charging capacity of up to 150 kilowatts with CCS2-DC fast charging. With an output voltage of more than 800 volts, the construction machinery can be recharged in just 20 minutes.
The mobile fast-charging system is housed in a robust 10-foot container. This makes it easy to transport the system to wherever the machines are being used. And thanks to the power bank function, no grid connection is required.
Your major benefits of the DEUTZ PowerTree
High end industry components
Plug & play fast charging at construction site
Easy installation and commissioning
Zero emission certified
High flexibility through mobile use
100% fast charging without grid connection
Peak shaving

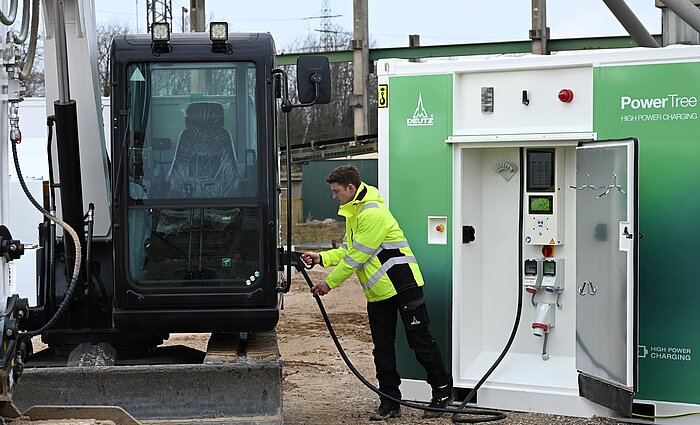

SET-UP, PLUG-IN, CHARGE
- Transport to your work location
- Set up and if needed connect to grid
- PowerTree provides high power charging
- Charge whenever and wherever you want
KEY FACTS AT A GLANCE
| TECHNICAL DATA | Version 1.5 - 126 kWh |
|---|---|
| Battery type | Li-Ion (NMC) |
| Nominal Voltage | 352 V |
| Installed nominal capacity | 126 kWh |
| DC Discharge power | 150 kW @ 800 V, 75 kW @ 400 V |
AC Discharge current (PowerTree output) | 32 A @ 400 V + 16 A @ 230 V |
| AC Charge current (PowerTree input) | 32 A + 63 A @ 400 V |
| Cooling | Cooling for components is equipped |
| Operating temperature | -30°C …+50°C |
| Fire detection system | Equipped |
| IP protective class | (>IP64) IP65 |
| Lifetime (Full equivalent cycles during lifetime) | 10 years (~2500) |
| Interfaces | CEE (AC charging & discharging), CCS2 (DC high power charging) |
| Dimensions (L x W x H) | 3.000 x 2.500 x 2.600 mm |
| Weight | < 5.000 kg |
DIGITAL SERVICES
Manage your PowerTree effortlessly: Our digital services provide an excellent overview of your PowerTrees. You can manage charging processes, authorizations, and sites.
Features
- Fleet management
- Charge management
- Remote servicing of charging stations
- Site control
- DEUTZ RFID card
- Display of charging processes
- Billing management
- Mobile app
- Web app
- Cloud-based
