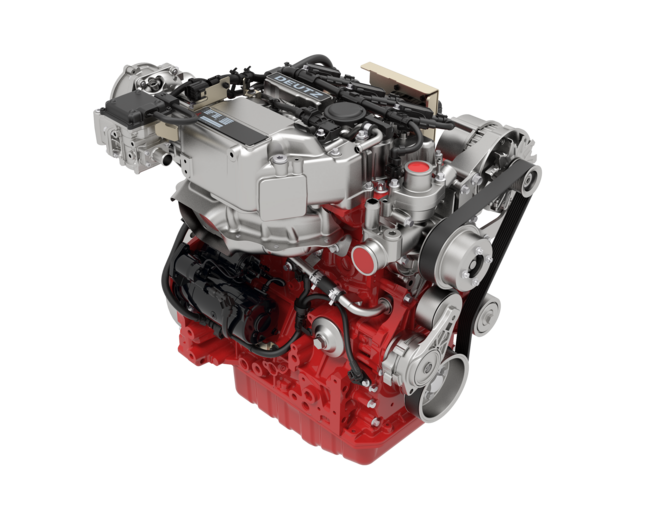

3-Cylinder Engine
G 2.2 L3
Technical data
- Emission norms
- US T2, EU V
- Series
- G 2.2/2.9
- Number of cylinders
- 3
- Bore
- 92 mm3.6 in
- Stroke
- 110 mm4.3 in
- Displacement
- 2.2 l134 cu in
- Maximum nominal speed
- 2800 rpm
- Power output
- 41.5 kW56.4 hp
- at speeds
- 2800 rpm
- Max. torque
- 160 Nm118 lb/ft
- at speeds
- 1600 rpm
- Min. idling speed
- 900 rpm
- Length
- 576 mm22.7 in
- Width
- 647 mm25.4 in
- Height
- 747 mm29.4 in
- Weight
- 208 kg458.6 lb
Key Features
Newly-designed, water-cooled 3-cylinder spark ignited LPG engine.
- Robust engine design for demanding industrial applications based on the successful TCD 2.9 series.
- Full electonic controlled LPG gas system, stoichiometric combustion, closed loop control and knocking sensors for lowest emissions and best performance at the same time.
- Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles.
- Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas powered machines.
- Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
- The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
- 100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps.
- Compact 3-way catalyst for future EU Stage V and EPA Tier 2 compliance.
